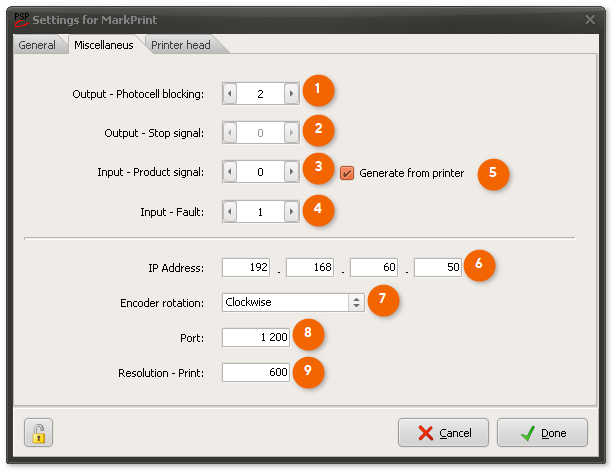

Specify whether the photocell is disconnected when production has not started.

If the photocell is activated when production has not started, the printer will give an error message.

Not used at the moment.

If the printer type requires to receive the photocell signal via an input.

•Normal value is: 0

Specify which input is activated when the printer reports an error.

•Normal value is active: 1

Specify whether the product signal comes from the printer.

Printer IP Address.

•Normal value : 192.168.60.50

Set the direction of rotation of the pulse generator.

Enter the resolution of the pulse generator.

•Normal value : 1200

Specify the resolution of the printout in dpi.

•Normal value : 600
