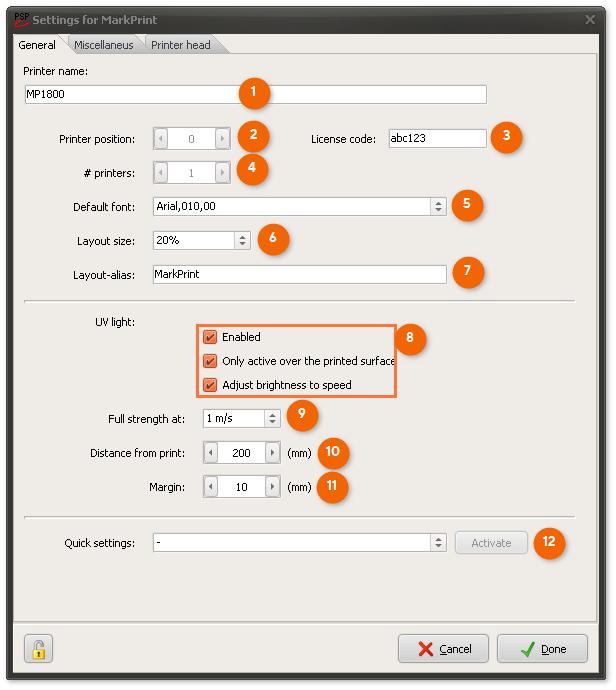

Unit name.

Name of the Printer.psp file in the PsPrint folder.

Set the printer position in the production line.

•Normal value is active: 0

License code for the printer.

The code can be found on the license document that was delivered with the system.

Specify the number of printheads in the production line.

•Normal value is active: 1

Specify which font to use by default.

Specify how the label should be enlarged on the screen.

Enter the printer names that the system will look for in the PsPrint folder.

Specifies settings for the UV lamp function.

•Normal value is active: Active

•Normal value is active: only active over printed area

•Normal value is active: adjust brightness according to speed

Specifies the speed on the track at which the UV lamp should have full power.

From 0.1 to 1.5 m/s

Normal value is : 1 m/s

Specifies the distance between the printer head and the UV lamp.

•Normal value is : 200-400 mm

Specifies in mm how far before and after the print head distance the UV lamp should be active.

•Normal value is : 10 mm

Activate quick setting for the type of product to be produced and the blackness of the label.
