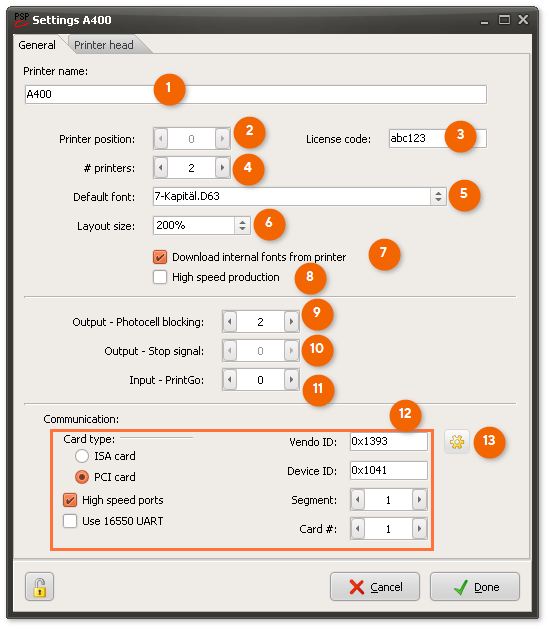

Unit name.

Name of the Printer.psp file in the PsPrint folder.

Set the printer position in the production line.

•Normal value is active: 0

The license code for the printer.

The code can be found on the license document that was delivered with the system.

Specify the number of heads on the installed printer which determines what is displayed in the layout.

Specify which font to use by default.

Specify how much the label should be magnified on the screen.

Specify whether all fonts that are fixed in the printer are downloaded to the application.

Restart the application to make them available.

In online stream addressing, the transmission of addresses to the printer is optimised to avoid timing problems.

Not recommended unless necessary.

Specify whether the photocell is disconnected when production has not started.

If the photocell is activated when production has not started, the printer will give an error message.

Not used at the moment.

If the printer type requires to receive the photocell signal via an input.

•Normal value is: 0

Specifies the type of communication card used with the printer.

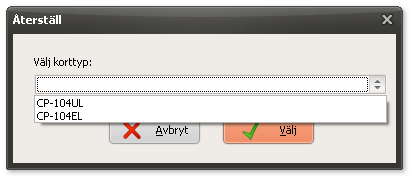

Reset the communication card.
