Print head settings

Head

No 1, 2 etc. depending on the number of heads specified in the basic settings.

Head turned...

Indicate whether the head is turned towards or away from the product orientation.

Print side

Specify on which side the address is written. (Back/Front)

Delay

Head 1: Set the delay between the photocell and the head.

Header 2: Specify the delay between header 1 and header 2.

Grid

The grid indicates the number of drops that the jet can generate at altitude.

The choice of raster affects the maximum production rate.

•1 line of 7 drops - Raster writes 1 line of 7 drops.

•1 line of 9, 12, 16 drops - Raster can write 1 line of 9, 12 or 16 drops.

•2 rows. 2x7 drops - A 16-drop grid without drops 8 and 9.

•2x7 + 16 drops - Can write all 16 drops.

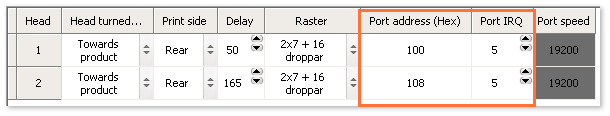

ISA card

Port address: specify the hardware address of the COM port used.

Port IRQ: Set the interrupt for the selected COM port.

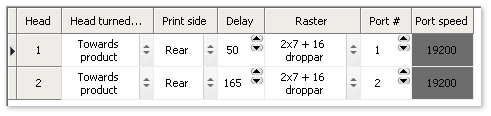

Port no - PCI card

Enter the port number for the print head.

Port speed

Specifies the speed used for communication.
