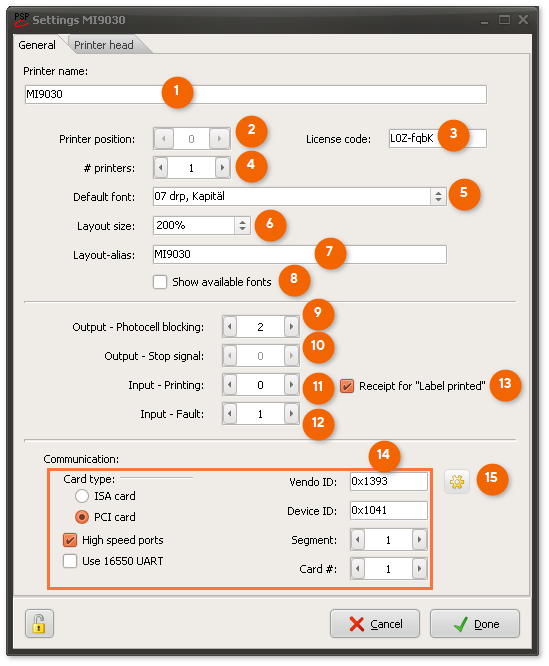

Unit name.

Name of the Printer.psp file in the PsPrint folder.

Set the printer position in the production line.

•Normal value is active: 0

License code for the printer.

Koden återfinns på licensdokumentet som levererades med systemet.

The code can be found on the license document that was delivered with the system.

Specify which font to use by default.

Specify how much the label should be magnified on the screen.

Enter the printer names that the system will look for in the PsPrint folder.

Displays available fonts.

Specify whether the photocell is disconnected when production has not started.

If the photocell is activated when production has not started, the printer will give an error message.

Not used at the moment.

If the printer type requires to receive the photocell signal via an input.

•Normal value is: 0

Specifies which input is activated when the printer reports an error.

•Normal value is active: 1

If active, an acknowledgement is sent that the label has been printed.

Specifies the type of communication card used against the printer.

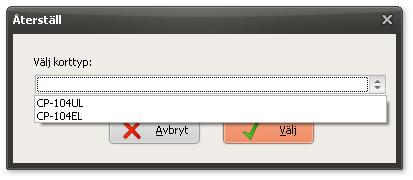

Reset the communication card.
