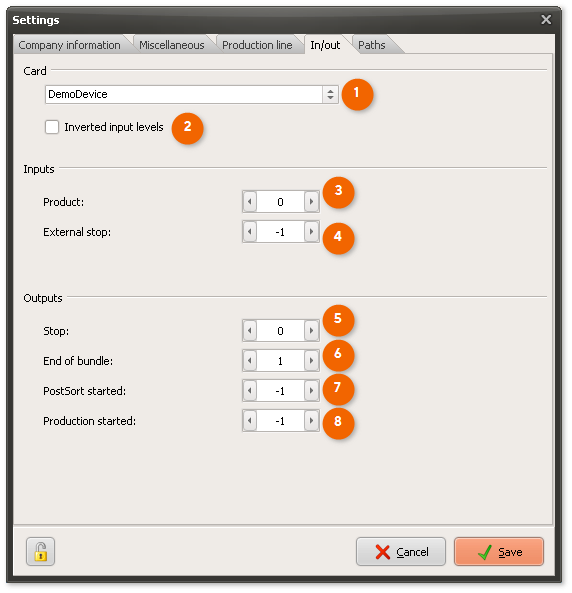

Specifies which control card is used for communication with the line.

Indicates whether high is interpreted as low and vice versa on the inputs.

•The normal mode is inaktiv.

Specifies which input activates download of the next address.

•Normal value is active: 0

Specifies which input is activated by an external stop signal.

•Normal value is inactive: -1

•Normal value is active: 3

Specifies which output is activated when the program wants the production line to stop.

•Normal value is active: 0

Specifies which output is activated when the program wants to signal that the batch is complete.

•Normal value is active: 1

Specifies which output is activated when the program wants to signal that the program has started.

•Normal value is inactive: -1

•Normal value is active: 3

Specifies which output should be activated when the program needs to inform the production line that the inkjet system is ready.

•Normal value is inactive: -1

•Normal value is active: 3
