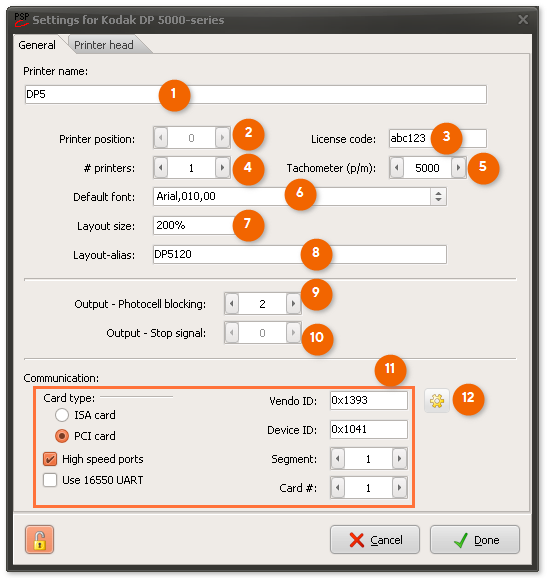

Unit name.

Name of the Printer.psp file in the PsPrint folder.

Set the printer position in the production line.

Normal value is active: 0

License code for the printer.

The code can be found on the license document that was delivered with the system.

Specifies the number of heads on the installed printer and determines what is displayed in the layout.

Enter the pulse generator pulses/meter.

•Normal value p/m:5000

Specify which font to use by default.

Specify how much the label should be magnified on the screen.

Enter the printer names that the system will look for in the PsPrint folder.

Specify whether the photocell is disconnected when production has not started.

If the photocell is activated when production has not started, the printer will give an error message.

Not used at the moment.

Specifies the type of communication card used against the printer.

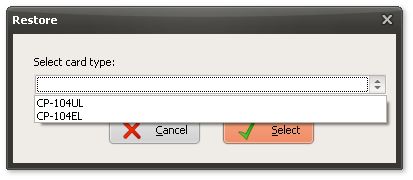

Reset the communication card.
