Register fields show the field names specified at import.

Register fields ending with _ were created by PostSort during sorting. For example HN1_ HN2_ Bunt_.

Free text to be printed on all addresses. E.g. MAGAZINE B

Add pagination fields to the layout.

PostSort adds a mark to the last product in a bundle during sorting.

In register fields it is called Bunt_ .

With Break Markup you can add your own markup to the layout.

Normal: Marking on all products except those listed in Referes to.

Break: Marking only on what is specified in Referes to.

Referes to can be Bundle, Postcode (when postcode changed), Load carrier.

Text options.

Set the default text options for all fields added to the layout.

Displays available fonts for the selected inkjet printer.

Add fields as barcodes to the layout.

Select the desired registry field and drag down to the layout.

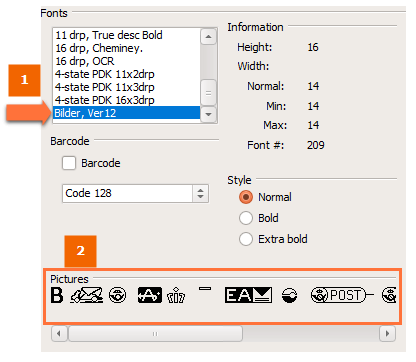

Add an image font to the layout.

1.Select Images in the Font menu.

2.Select the desired image font and drag down to the layout bar.

 Some printer models have pre-installed fonts and it is important that PostSort Preparation has the same font set as the printer.

If a font is used in the layout that is not installed in the printer, the printout may be missing text or the printer may report errors.

For questions contact support@21grams.com.

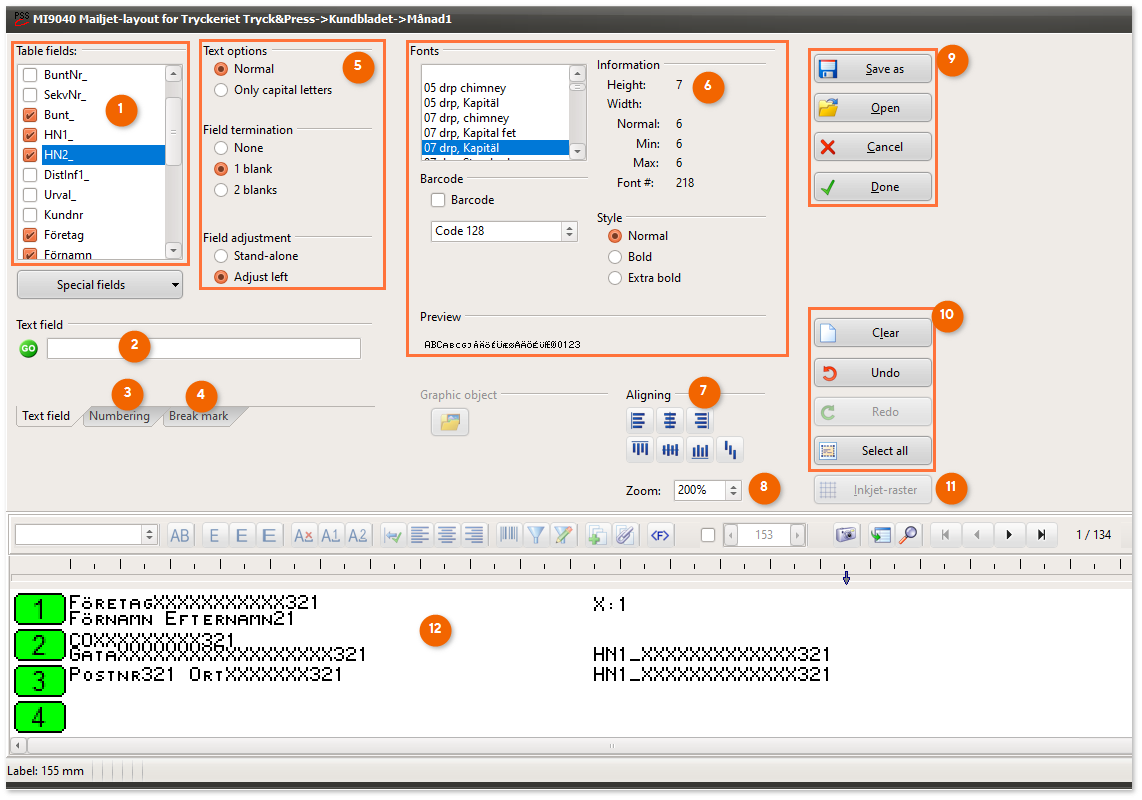

Adjust fields in the layout

Zooma layouten

Save as:

Open:

Cancel:

Done:

Save layout.

open saved layout.

close without saving changes.

save and close.

Clear:

Undo:

Redo:

Select all:

Clears all text in the layout.

Undo latest..

Redo latest..

Selects everything in the layout.

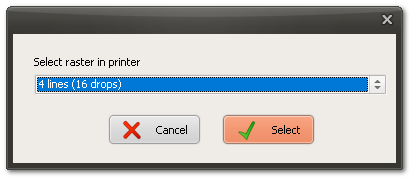

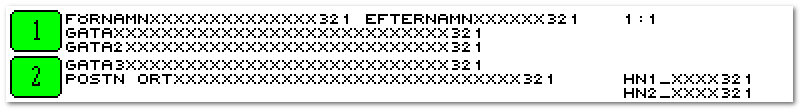

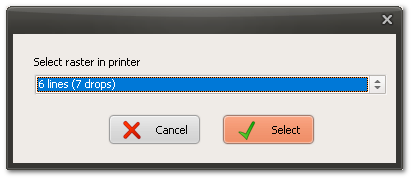

Choose 4-row or 6-row grids for the layout.

 If the printer does not support raster, this function is disabled.

Layout.

Change font in selected field.

Specify whether text should be only capitals in selected field.

Enter whether the font should be Normal, Bold or Extra bold in the marked field.

Exit without spaces in selected field.

Finish with 1 space in marked field.

Finish with 2 spaces in the selected field.

Lock a field to the left

Stand-alone field

 Hold down CTRL and drag fields to the layout and it will become freestanding.

•Fields to the left must always give way.

•Fields on the left can be shrunk down to 0 in length.

•Fields that are centered or right aligned can never pass a "stop" to the left. Then they won't print all the content.

•Fields that do not fit all text, remove text from the end.

Barcode

Filter on/off

Change Filter

Merge fields.

Select two or more fields to merge into one.

Link fields.

Use to avoid empty lines on the layout such as C/O field.

Linking the field moves it down or up to an empty row.

•Selecting the fields from top to bottom moves the fields upwards.

•Selecting the fields from the bottom up moves the fields downwards

Show content / field codes in objects.

 Use display field codes in the layout design as fields that are sometimes empty may not be visible, e.g. c/o.

Limit label length.

 If a field is longer than the limit, the field is cut off when printing.

Copy to clipboard.

Go to address..

Search...

Move forward or backward in the entries.

Go to the first or last entry.
